① Adopt microprocessor control system, reliable quality, and high control precision.

② Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter, its convenient and concise.

③ Good in safety feature; it has overheating protection system, there’s indicator and alarm function with sub-pressure, overpressure and improper operation.

④ With the welding parameters memory function, when switch on, it will automatically show the same parameters as the last set, so there’s no need to adjust parameter again at the same condition.

⑤ Welding electrodes can be chosen with different combination, it’s suitable for the different weldment.

2.Main technique parameter:

① Power supply: 220V, 50HZ□  or  110V, 60HZ □

② Power: maximum current 20A

③ Transformer output power: 2000W,   output voltage: 5V

④ Incorrect operation alarm: when operation condition don’t accord with SET mode, the display shows Error beep.

⑤ Security type: belongs classⅠ, type B

⑥ Transformer overheating protection: 85℃

⑦ Energy regulation: Spot welding (dxx)      1~30

                                               Braze welding   (QXX)         1~9

⑧ Dimensions of weldment: Ф0.2mm~1.8mm stainless steel wire

⑨ Fuse: Ф5×20mm, 20A

⑩ Environment conditions: temperature 5℃~40℃

                           Relative humidity ≤80%

⑪ Storage condition: temperature -10℃~55℃

                      Relative humidity ≤80%

3、Packaging & Delivery

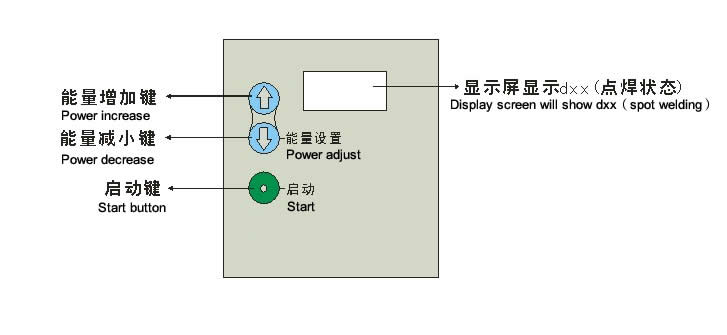

4、Operation picture

5.Operation Detail

Our Strength Of Spot Welder

1)Big power

2)Our spot welder can not only use in dental market, but also can use in the industry

3)Three types can meet different customers’ demand; make dentists very easy to use, and convenient operation

4)MLSW-01 has faction clamps to do heat treatment
