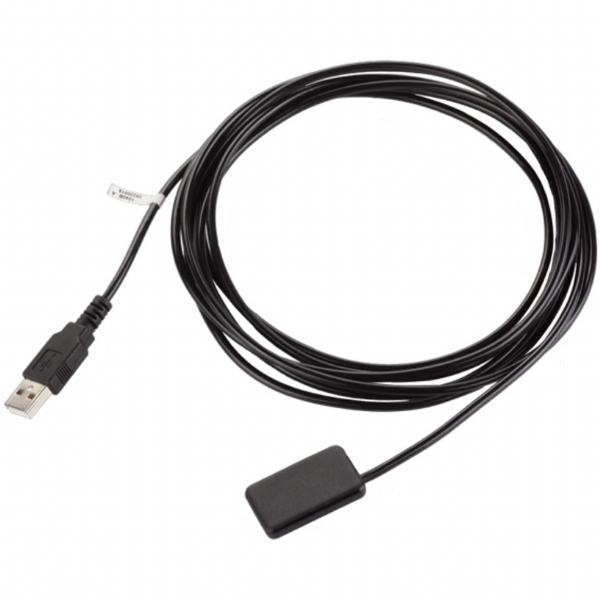

Trident Ds530 digital x ray machine dental sensor MXS-1
Features
1.Model NO.:DS530
2.Classification:Imaging Diagnostic Equipment
3.Type:X Ray Equipment
4.Voltage:110V-220V 50Hz
5.Pixel Size: 20X20 um
6.Resolution Ratio:>20 Line Pair/Mm
7.Gray Level:12 Bit
8.Size: 23*18*7cm mm
9.Image Capture Time:3 Seconds
10.Induction Area:30*20mm (600mm2)
11.Sensor's Life Expectancy:>100000 Times
12.Bend Times of Connecting Line:>50000 Times
Technical Data
Material: APS CMOS
Sensor Active area: 30X20(mm) Resolution: 1500X1000 Resolution size: 20X20 um Interface: USB 2.0
Lifetime: >100000times
Water level IP67 Operating system: Windows 7
Specifications
1.Imported from Europe, adopted with international advanced APS sensor
Without data box. Connect with USB 2.0 directly
2.Built-in image transferring chip, NO need for PLC, MORE convenient and easy
Water level: IP67, cable length: 2m(polyurethane material, it could be extended to 18m at most )
3.Preventing with accidental fall (15times at most at 1m place )pls avoid falls as possible as you can English operating software
4.Free to update to international version
